Introduction

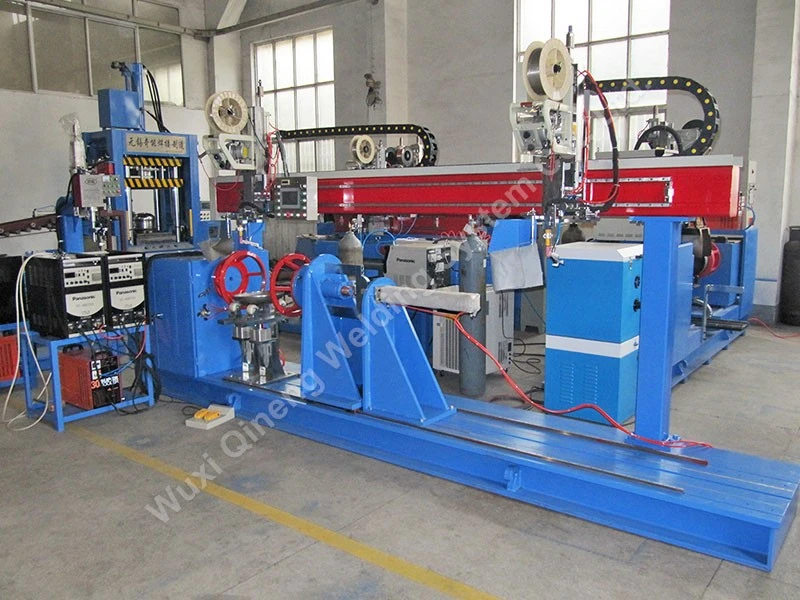

This automatic double head circumferential welding machine is used to complete the circumferential welding of galvanized steel water heater tanks(need to be assembled first), mainly composed of base, spindle box, pneumatic clamping mechanism, welding gun electric lifting mechanism, welding gun fine-tuning mechanism, mold, middle top mechanism, gas circuit control system and electrical control system.
Main parameters
|
No. |
Product model |
L-2000 |
|
1 |
Bed type |
Double-head, horizontal type |
|
2 |
Welding method |
CO2/MIG/MAG |
|
3 |
Welding power supply |
Panasonic welder |
|
4 |
Rated voltage (V) |
1Φ 220V 50Hz 3Φ 380V 50Hz |
|
5 |
Rated capacity (kW) |
20 |
|
6 |
Maximum workpiece length (mm) |
2000 |
|
7 |
Welding plate thickness (mm) |
2.0 |
|
8 |
Welding workpiece diameter (mm) |
340-500 |
|
9 |
Welding speed (mm/min) |
200-1000 |
|
10 |
Spindle center height |
900 |
|
11 |
Electric up and down travel of welding gun (mm) |
50 |
|
12 |
Welding gun up and down fine-tuning travel (mm) |
20 |
|
13 |
Welding gun left and right fine-tuning travel (mm) |
20 |
|
14 |
Operation interface |
Touch screen |
|
15 |
Overall dimensions (L*W*H /mm) |
4000×920×2350 |
|
16 |
Weight (T) |
3.0 |
About us
QINENG welding is a professional steel cylinder equipment manufacturer, mainly engaged in LPG steel cylinder production line, steel cylinder production line and other products. It has dozens of domestic technologies (with visual laser double tracking welding system as the core). It has a high-quality scientific and technological team that is proficient in welding technology. The professionally developed and produced Galvanized Steel Water Heater Circumferential Welding Machine has been well received by customers.Our Water Heater Welding Machines are well received by domestic and foreign customers and exported to countries and regions such as Europe, Asia and Africa.
