Introduction

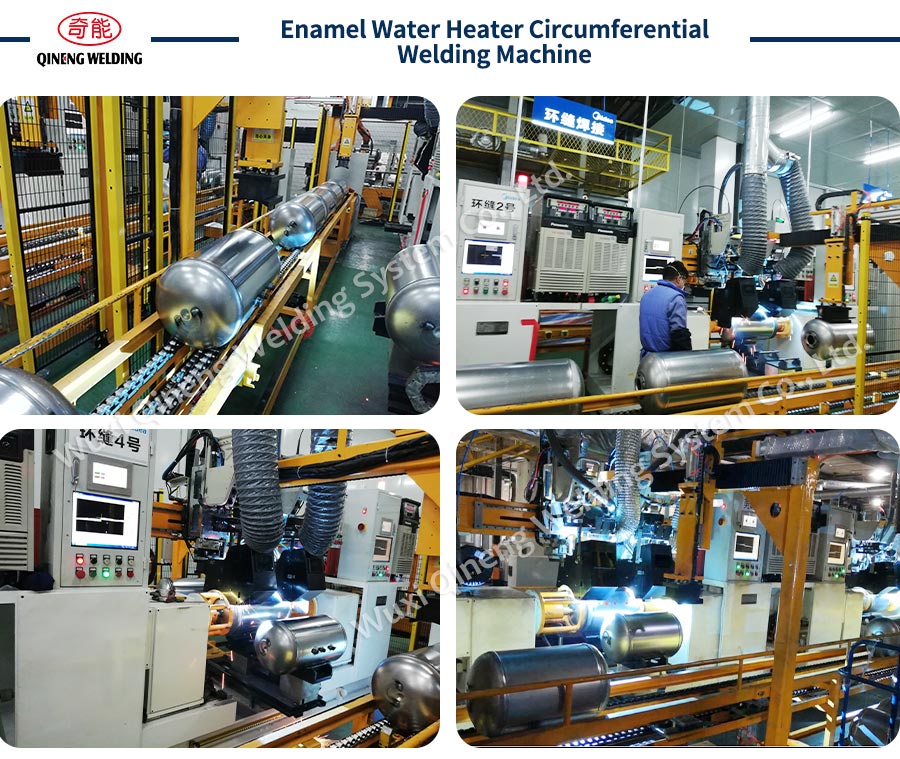

This automatic double head circumferential welding machine is used to complete the circumferential welding of enamel water heater tanks(need to be assembled first), mainly composed of base, spindle box, pneumatic clamping mechanism, welding gun electric lifting mechanism, welding gun fine-tuning mechanism, mold, middle top mechanism, gas circuit control system and electrical control system.
Main parameters
|
No. |
Product model |
L-2000 |
|
Product Name |
Enamel Water Heater Circumferential Welding Machine |
|
|
1 |
Bed type |
Double-head, horizontal type |
|
2 |
Welding method |
CO2/MIG/MAG |
|
3 |
Welding power supply |
Panasonic 350GR3 |
|
4 |
Rated voltage (V) |
1Φ 220V 50Hz 3Φ 380V 50Hz |
|
5 |
Rated capacity (kW) |
20 |
|
6 |
Maximum workpiece length (mm) |
2000 |
|
7 |
Welding plate thickness (mm) |
2.0 |
|
8 |
Welding workpiece diameter (mm) |
340-500 |
|
9 |
Welding speed (mm/min) |
200-1000 |
|
10 |
Spindle center height |
900 |
|
11 |
Electric up and down travel of welding gun (mm) |
50 |
|
12 |
Welding gun up and down fine-tuning travel (mm) |
20 |
|
13 |
Welding gun left and right fine-tuning travel (mm) |
20 |
|
14 |
Operation interface |
Touch screen |
|
15 |
Overall dimensions (L*W*H /mm) |
4000×920×2350 |
|
16 |
Weight (T) |
3.0 |
Application

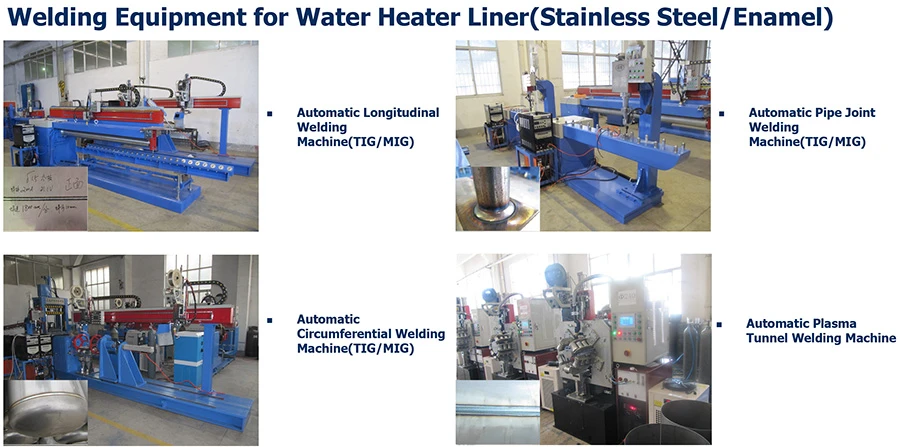

QINENG welding mainly produces complete sets of automated welding equipment (TIG welding, MAG welding, MIG welding, PAW welding) and automated welding system integration for various purposes, as well as related manufacturing equipment.

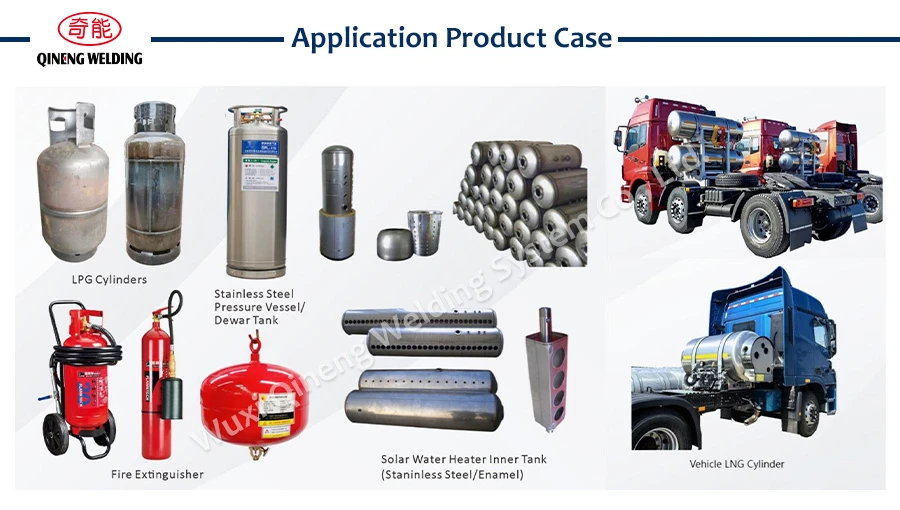

Our automatic double head circumferential welding machine is used to produce liquefied gas cylinders(LPG cylinders), Fire extinguisher cylinders, refrigerant cylinders, water heater tanks, Dewar tanks, cryogenic liquid cylinders, vehicle LNG cylinders, pressure vessels, etc.
