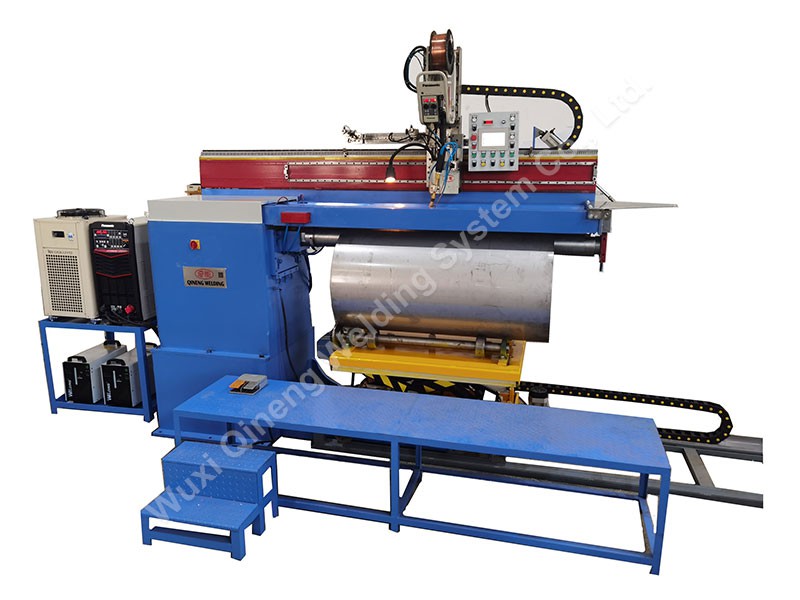

Vehicle LNG Cylinder Longitudinal Welding Machine

This vehicle LNG cylinder automatic welding equipment uses plasma welding machine+TIG welding machine, automatic wire feeder, and visual laser dual tracking system. This solution adds a set of visual laser automatic dual tracking system (used for automatic tracking of welds, using visual imaging technology for real-time tracking, guiding the welding gun to automatically align the weld to ensure weld quality. The system is equipped with a German industrial PC, high-speed camera, industrial computer display, and a two-dimensional actuator driven by a servo motor + precision ball screw). Automatically align and track the weld.

Model Name: Multifunctional Vehicle LNG Cylinder Longitudinal Welding Machine

1) Weldable material: SUS304

2) Diameter range: ￠400mm～￠900mm

3) Welding length: 2000mm

4) Workpiece thickness: 4mm～6mm

5) Plasma welding+TIG welding

This Vehicle LNG Cylinder Longitudinal Welding equipment is based on the longitudinal seam plasma automatic welding equipment and adds a TIG welding head for weld base welding. Adding an oscillator to the TIG welding head can make the weld fuller.

This welding machine has the following advantages:

1) On 2.5-10mm plates, it can achieve no beveling, one-time penetration, single-sided welding and double-sided forming.

2) Use TIG to cover the surface to make the front weld beautiful and smooth, which is convenient for subsequent polishing.

QINENG welding mainly produces complete sets of automated welding equipment (TIG welding, MAG welding, MIG welding, PAW welding) and automated welding system integration for various purposes, as well as related manufacturing equipment.

Our Plasma and TIG Welding Machine is used to produce liquefied gas cylinders(LPG cylinders), Fire extinguisher cylinders, refrigerant cylinders, water heater tanks, Dewar tanks, cryogenic liquid cylinders, vehicle LNG cylinders, pressure vessels, etc.
