Introduction
This automatic copper pipe brazing welding machine adopts flame(oxygen-propane flame) automatic wire feeding soft brazing copper tube process. The cylinder rotates automatically and the copper tube is automatically formed. The brazing material uses Φ4mm tin-based brazing material with brazing flux. The stainless steel outer cylinder and copper tube are heated by flame to reach the melting temperature of the brazing material. The brazing flux removes the oxide scale on the surface of the copper tube and cylinder, and realizes the spreading and wetting of the molten tin wire, thereby filling the gap between the copper tube and the cylinder to form a beautiful fillet brazing seam. In order to prevent the flame heating heat from damaging the material of the stainless steel body and welding deformation, a cooling water spray system is provided to cool the workpiece during the brazing process, thereby ensuring the brazing quality of the outer cylinder and the quality of the workpiece deformation.
Equipment configuration table
|
No. |
Item |
Technical parameters |
|
1 |
Model |
L-1400 |
|
2 |
Power Supply |
AC 220V/380V, 50Hz |
|
3 |
Rated Power (Kw) |
4.5 |
|
4 |
Welding Copper Tube Specifications (mm) |
φ9.5×1 |
|
5 |
Welding Copper Tube Material |
Annealed TP2 |
|
6 |
Welding Cylinder Plate Thickness (mm) |
3.0～4.0 |
|
7 |
Cylinder Weight (Kg) |
≤150 |
|
8 |
Welding Cylinder Material |
|
|
9 |
Welding Cylinder Inner Diameter (mm) |
Φ500～Φ850 |
|
10 |
Welding Cylinder Length (mm) |
900～1400 |
|
11 |
Solder Diameter (mm) |
Φ4.0 |
|
12 |
Cylinder Rotation Speed (mm/min) |
50～1500 |
|
13 |
Welding Speed (mm/min) |
100～1000 |
|
14 |
Wire Feeding Speed (mm/min) |
300～2000 |
|
15 |
Welding Spacing (mm) |
50～110 |
Product Details
Product Name:
Cryogenic Liquid Cylinder Copper Pipe Brazing Welding Machine

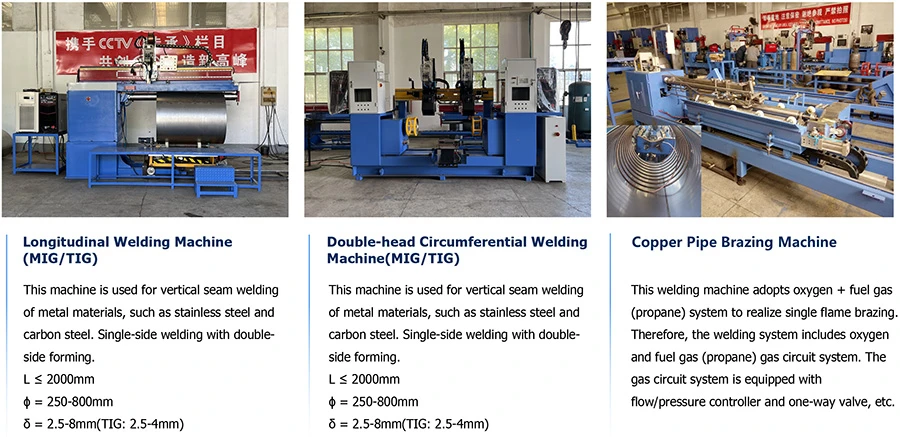

Longitudinal Welding Machine(MIG/TIG)
Double-head Circumferential Welding Machine(MIG/TIG)

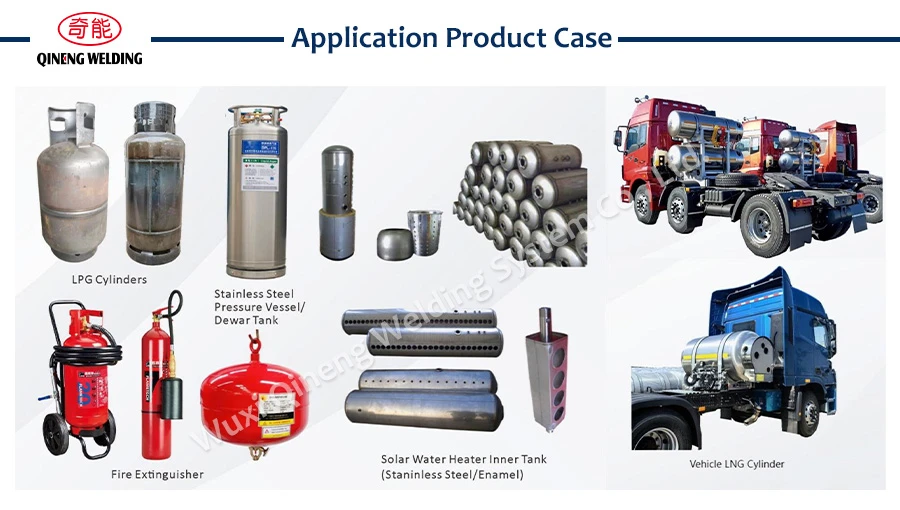

Application
QINENG welding mainly produces complete sets of automated welding equipment (TIG welding, MAG welding, MIG welding, PAW welding) and automated welding system integration for various purposes, as well as related manufacturing equipment.
Our nitrogen cryogenic tank welding machine is used to produce liquefied gas cylinders(LPG cylinders), Fire extinguisher cylinders, refrigerant cylinders, water heater tanks, Dewar tanks, cryogenic liquid cylinders, vehicle LNG cylinders, pressure vessels, etc.
