Introduction
This cryogenic liquid cylinders automatic welding equipment is used for welding inner shell of kinds of stainless steel pressure vessels, left TIG welder for the fillet welding of cylinder body and bottom plate, right MIG welder for the circumferential welding of cylinder body and upper shell.
This equipment consists of machine bed, spindle box, four-claw chuck, crossbeam guide, double welding gun head, hydraulic tightening tailstock, hydraulic middle pushing mechanism, YD-500GL welding machine, MIG water-cooled welding gun, YC-400TX welding machine, TIG water-cooled welding gun, cooling circulating water tank, automatic weld seam tracker, hydraulic system, pneumatic system, PLC electrical control system, etc.
Equipment configuration table
|
No. |
Item |
Parameter |
|
1 |
Type |
Horizontal |
|
2 |
Welding method |
TIG, MIG dual purpose |
|
3 |
Welding wire specification (mm) |
TIG: φ1.2; MIG: φ1.2 |
|
4 |
Maximum workpiece length (mm) |
2000 |
|
5 |
Effective welding plate thickness (mm) |
3~5 |
|
6 |
Clamping outer diameter (mm) |
f766 |
|
7 |
Maximum allowable workpiece weight (kg) |
450 |
|
8 |
Output welding current range (A) |
MIG: 60～500A; TIG: 4～400A |
|
9 |
Welding speed (mm/min) |
TIG:~120 MIG:~720 |
|
10 |
Center height (mm) |
950 |
|
11 |
Electric up and down travel of welding gun (mm) |
500 |
|
12 |
Front and rear fine-tuning travel of welding gun (mm) |
20 |
|
13 |
Left and right adjustment travel of welding gun (mm) |
Arbitrary adjustment, locking |
|
14 |
Weld seam tracking accuracy (mm) |
±0.25 |
|
15 |
Input power |
3- AC380V/50Hz |
|
16 |
Total installed capacity (kW) |
28 |
|
17 |
Rated input capacity of welding power supply (KVA/KW) |
MIG:23.3/22.4;TIG:13.9/13.2 |
|
18 |
Rated duty cycle of welding machine |
MIG:100% ;TIG: 60% |
|
19 |
Spindle motor power (KW) |
2 |
|
20 |
DC motor power of welding gun head (W) |
150W,single phase DC110V |
|
21 |
Cooling circulating water tank (TIG) |
Maximum flow rate 9.5L/min, maximum pressure 35Psi |
|
22 |
Cooling circulating water tank (MIG) |
Flow rate 1.5-5.3L/min, maximum pressure 5Kg/cm2 |
|
23 |
Operation interface |
Button + color touch screen |
|
24 |
Dimensions (L*W*H /mm) |
Main Machine: 5280×1500×2900; |
|
25 |
Weight (T) |
6 |
Application
QINENG welding is a professional steel cylinder equipment manufacturer, mainly engaged in LPG steel cylinder production line, steel cylinder production line and other products.

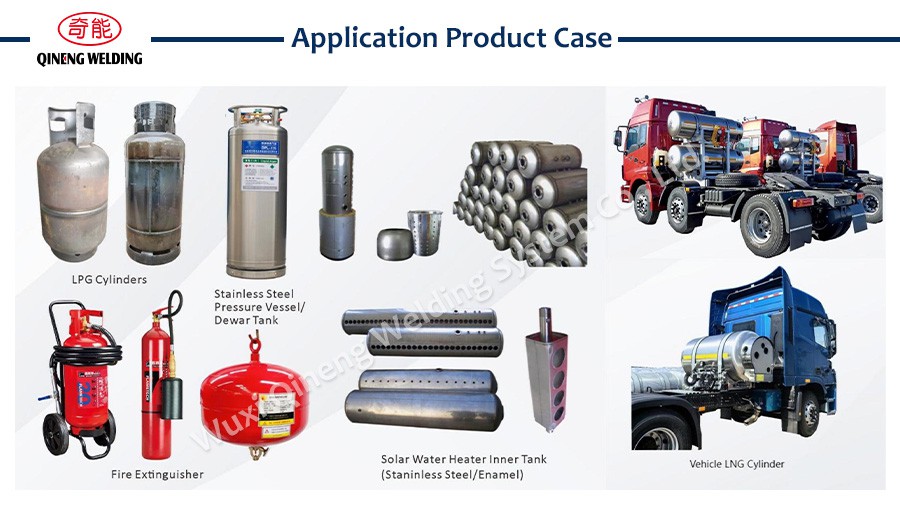

Our Liquid Oxygen cylinder welding machine is used to produce liquefied gas cylinders(LPG cylinders), Fire extinguisher cylinders, refrigerant cylinders, water heater tanks, Dewar tanks, cryogenic liquid cylinders, vehicle LNG cylinders, pressure vessels, etc.
